Low Tension Current Transformer

Discover the exceptional quality of our Low Tension Current Transformer, manufactured and supplied by our elite team with an outstanding experience of over 32 years in the industry. As an incomparable manufacturer, supplier, and exporter serving the entire All India market, we offer the special Low Tension Resin Cast Current Transformer and hot deal 1000A Low Tension Tape Wound Current Transformer-some of the most popular choices in the category. Our products stand out by delivering elite accuracy, remarkable dielectric strength, robust mechanical durability, maintenance-free operation, and compact design, making them ideal for varied low tension applications. Engineered for precise current measurement, enhanced insulation, and superior performance, our transformers set the benchmark in safety, reliability, and efficiency. Choose our Low Tension Current Transformers for unrivaled quality that surpasses industry standards, and experience the optimal blend of advanced technology and trust that only a manufacturer of our repute can offer.

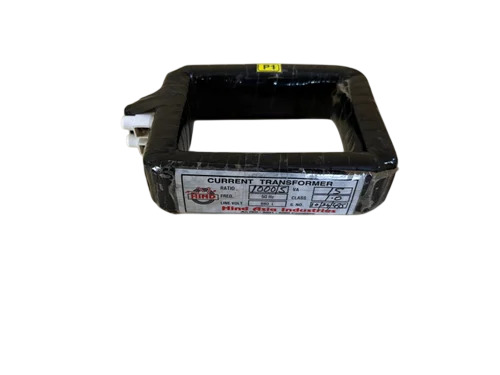

1000A Low Tension Tape Wound Current Transformer

Price 750 INR/ Piece

MOQ : 5 Pieces

  • Capacity
  • 15 VA burden
  • Coil Material
  • Other , Copper
  • Coil Number
  • Other, Single coil
  • Coil Structure
  • Other, Rectangular tape wound
  • Cooling Type
  • Self cooled
  • Dimension (L*W*H)
  • Approx. 150x100x60mm
  • Efficiency
  • High
  • Frequency (MHz)
  • 50
  • Load Loss
  • Low
  • Low Voltage
  • 660L
  • Material
  • Tape wound core
  • Operating Temperature
  • -10C to 55C
  • Output
  • 5 A secondary current
  • Phase
  • Single Phase
  • Power Scope
  • Up to 1000A
  • Product Type
  • Other, Low Tension Tape Wound Current Transformer
  • Rated Voltage
  • 660V
  • Standard
  • IS 2705
  • Usage
  • Current measurement in LT circuits
  • Weight
  • Appx. 2-3 kg

Low Tension Resin Cast Current Transformer

Price 700 INR/ Piece

MOQ : 5 Pieces

  • Capacity
  • 10 VA
  • Coil Material
  • Other , Copper
  • Coil Number
  • Other, Single
  • Coil Structure
  • Other, Rectangular Core
  • Cooling Type
  • Air cooled
  • Dimension (L*W*H)
  • Approx. 120x80x60 mm
  • Efficiency
  • High
  • Frequency (MHz)
  • 0.05
  • Load Loss
  • Low
  • Low Voltage
  • 660 V
  • Material
  • Resin Cast
  • Operating Temperature
  • -10C to 55C
  • Output
  • 5 A
  • Phase
  • Single Phase
  • Power Scope
  • Low Tension
  • Product Type
  • Current Transformer
  • Rated Voltage
  • 660V
  • Standard
  • IS 2705
  • Usage
  • Current measurement in LT circuits
  • Weight
  • Approx. 1.5 kg
